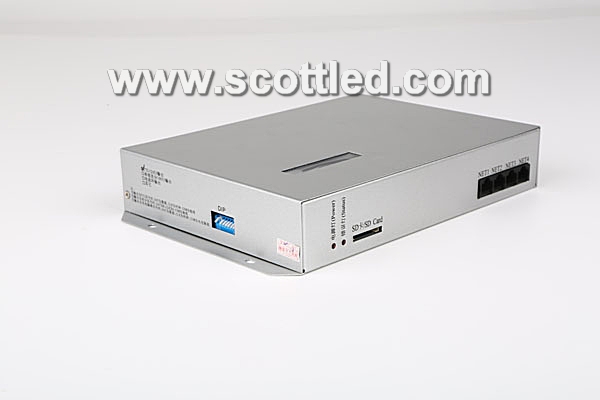

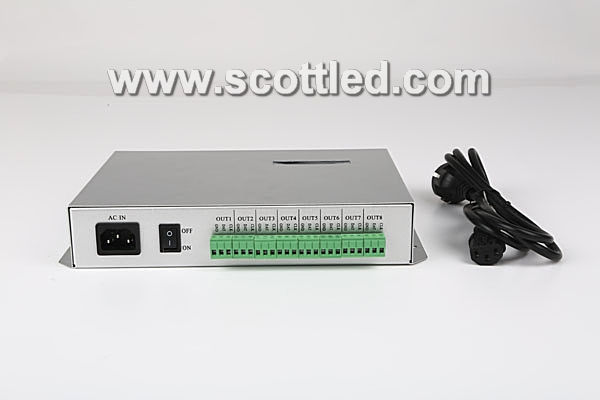

T-300K sd card online led digital pixel controller, can be controlled via PC; suppor many kinds of IC(WS2801,WS2811,UCS1903,LPD683,LPD8806 and so on); 8ports*1024pixels=8192pixels, AC110~220V input |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Item : SC-T-300K |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Details :T-300K sd card online led digital pixel controller, can be controlled via PC; suppor many kinds of IC(WS2801,WS2811,UCS1903,LPD683,LPD8806 and so on); 8ports*1024pixels=8192pixels, AC110~220V input
Double-line IC or single-line IC with low speed , one interface controls 512 lamps the play speed can reach 30 frames/s Note If the distance between controller and lamps more than 50m we suggest using differential signal transmission control or Photoelectric isolated signal transmission control,please read the manual carefully. Signal lines must be a cable,the best is Super five kinds of cable. 2. Support chips:
7.Application scope LED digital tube,LED point light sourcethe exterior light and a module pixel screen(dazzle colour screens)high power DMX lighting. 8.Specific parameters Memory card Type;SD card(if controlling so many lamps it is best to use the high-speed SD card Capacity;128MB-2GB Format;FAT Store file;*.led Physical parameters Working temperature;-30-85 Weight;1.35KG Working voltage;AC220V Working power;8W Size;L270mm*W180mm*H55mm Signal port:3pin connect port NOTE;T-300K Support online download the effect-file to SD card. Before copy files to SD card,The SD card must be formatted as FAT format. The SD card in controller can not be hot-swappable, plug the SD card every time, you must first disconnect the power supply 9. Differential signal transmission control 1.Purpose For many big engineering ,the distance between lamps and controller more than 50m and less than 200m. 2 details built-in Signal transmitter above signal transmission Repeaters,signal transmission receiver 3 Appearance picture
Attention the distance, between controller and transmission Repeaters between transmission Repeaters and transmission Repeaters between transmission Repeaters and signal transmission receiver can not be more than 50m,The maximum distance between controller and signal transmission receiver is 200m
10.Trouble shooting Question 1 controller after electrify, indicator light is normal, but the lamps no effect change Answer: the reasons for this are the following: (1)Please check lamps signal and controller have correct connection. (2) If it is meet TTL signal, lamps and lanterns and controller must altogether, namely the lamps GND (ground) to the GND and controller (ground) got together. (3) Please check the effect file of SD card ,the selected models whether current lamps and used the chip consistent. Question2 After power, the T-300k ERROR indicator has been flashing without display output answer;The ERROR indicator has been flashing means the controller did not read the card correctly, possible problems: SD card is empty, with no effect file. The effect file in the SD card and the controller model are not match, please choose correct controller model in LedEdit and then re-create the effect file *led. SD card did not format to FAT before copy effect files. Please check the supply power voltage, the controller can be individually powered to exclude power reasons Changing the SD card and then test to exclude the possibility of a bad SD card |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
