T-200K system features

    1,32—256 Gray, Gamma correction procession software

    2,Combined with video encoding and broadcasting software LedEdit , support rules and specific-shaped handle, and other points, line lights source

    3,Eight-port output,port 512/1024 lights, can online but also offline,computer online can support 240000 pixels points

    4,Connect the computer network port directly

     5,Can download programs to the controller from computer

     6,Use a serial cable between controllers cascaded without external switches

     7,Controller encoding use the hardware DIP settings to make the project more  stable in use

We provide two different products according to different applications T-200K and T-200K-B

Specific parameters

       Memory card

          Type:SD card(if control more lights, suggest using high-speed SD card

          Capacity:1GB—2GB

          Format:FAT format

          Store files:*.led

       Physical parameters

           Size:277*180*47mm

           Weight:1.3Kg±0.2Kg

           Temperature:-20—85

           Power supply:AC 220V input

           Power:10W

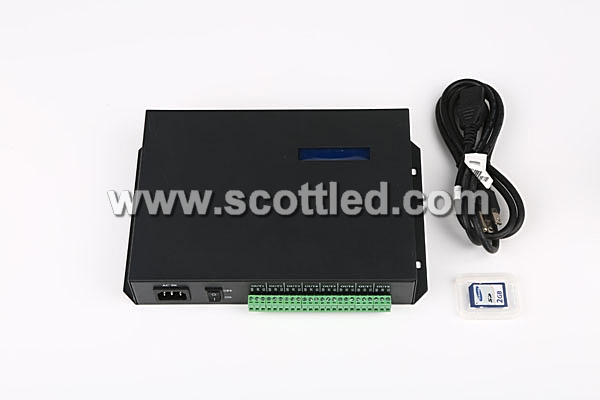

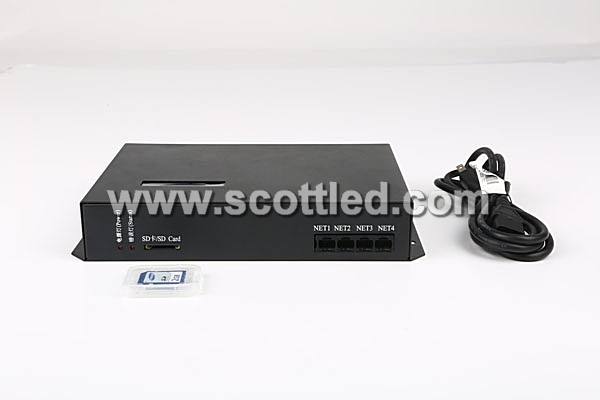

 T-200K SD Card online led pixel controller,can be controlled via PC;support many kinds of IC 4096pixels (8 ports), AC90-260V

1. T-200k System features

    1.32—256 Gray level,Support software Gamma correction.

2. Support the rules and special-shaped handle.

3. 8 ports output,one port can support 512-1024 pixels.

4. offline (SD card) control and on-line control can be combined using multiple controllers, the contents of the offline control program stored in the SD card.

5. Compatible with single line or double line chips.

6. If the controller to the lamps distance can choose photoelectric isolated transmission and as far as several distances of up to 200-300 M

Note:T-200K Off-line(SD Card) control need to be the first master controller insert SD card.

T-200 K in the PC software compatible with T-100 K-B

 NOTE:1. When T-200k controller control less than 512 lamps the frame rate can reach 30fps. When T-200k control more than 512 lamps and less than 2048 lamps the frame rate will slow down automatically.

2. T-200k must use the new software LedEdit 2013.

2. Support chips:

NOTE:if chip is 256 grade gray level and Single-line IC choose .When programming choice high speed mode and one interface controls 1024 lamps the play speed can reach 30 frames/s. Double-line IC or single-line IC with low speed , one interface controls 512 lamps the play speed can reach 30 frames/s.


DIP switch settings

   Controller encoding to be set using DIP switches. Setting as follow:

NOTE: In the form, DIP status‘0’means ON,‘1’means OFF
