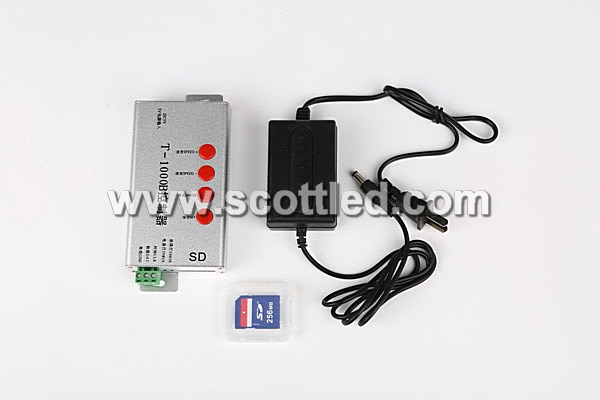

T-1000B led pixel sd card controller,support WS2801,LPD6803,WS2811,TM1804,TM1809,LPD8806 Etc; max 2048pixels controlled, with AC110V`220V to DC5V adapter
T-1000B led pixel sd card controller,support WS2801,LPD6803,WS2811,TM1804,TM1809,LPD8806 Etc; max 2048pixels controlled, with AC110V`220V to DC5V adapter

Item : SC-T-1000B

Details :

 T-1000B led pixel sd card controller,support WS2801,LPD6803,WS2811,TM1804,TM1809,LPD8806 Etc; max 2048pixels controlled, with AC110V`220V to DC5V adapter


I. T-1000B System features

1. 32—256 grade Gray level,Support software Gamma correction.

2. Support the rules and special-shaped handle.

3. 1 port output,can support 2048 lamp pixels.

4. SD Card control,offline control, the contents of the line control program stored in the SD card..

5. T-1000B store 16 files max, copy the files into SD card in turns.

6. Files be stored in the SD named as:00_1.led, 01_1.led, 02_1.led.

7. Compatible with single line or double line chips. Do not need to connect CLK line when use single line led fixture.

NOTE:

1. The model T-1000B with one port output, When it control 512  pixels the speed can reach 30fps, more than 512 pixels, the frame speed will be slow down automatically
2. T-1000B must use the new software LedEdit 2012.



II. Support chips:

Support IC type

Module in LedEdit software

Pixel numbers

Remark

LPD6803,D705,1101,6909, 6912

T-1000-6803

2048 pixel





LPD8806,LPD8809

T-1000-8806

2048 pixel



TM1803,TM1804,TM1809,TM1812

T-1000-TM

2048 pixel

TM1804 and TM1809

low speed and high speed

TM1903TM1904TM1909TM1912

T-1000-TM19

2048 pixel



UCS6909UCS6912UCS7009UCS5903

T-1000-UCS-32

2048 pixel



UCS1903UCS1909UCS1912

T-1000-UCS-256

2048 pixel

low speed and high speed

UCS3903

T-1000-UCS-1024

2048 pixel



DMX512

T-1000-DMX

170/512 pixel

Compatible DMX512

WS2801,WS2803

T-1000-WS

2048 pixel



WS2811

T-1000-WS2811

2048 pixel

low speed and high speed

DS189

T-1000-DS189

2048 pixel



TLS3001,TLS3002TLS3008

T-1000-TLS

* pixel



P9813

T-1000-P9813

2048 pixel



SM16715

T-1000-SM16715

2048 pixel

low speed and high speed

SM16716

T-1000-SM16716

2048 pixel



BS0901,BS0902

T-1000-0901

2048 pixel



BS0815

T-1000-0815

2048 pixel

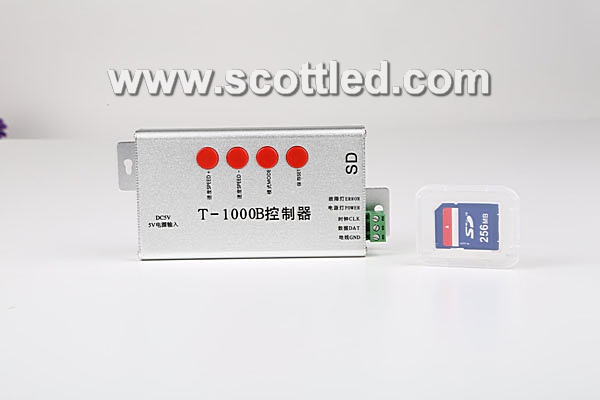

Connection diagram:

7.5V-24V

DC power input, to provide two sets of power input, select a group can be.

5V

Power Ground.

GND

Error indicator

ERROR

Power LED

POWER

SD card slot

SD CARD

Output CLK

CLK

Output DATA

DAT

Signal Ground

GND







GND

Signal Ground



Regulatory function button:

SET

Save Settings to save current settings file and the playback speed

MODE

Switch File

SPEED+

Speed up the playback speed

SPEED-

Slow down the playback speed





System architecture diagram:

Specific parameters:
Memory Card:
. Type: SD Card
. Capacity: 128MB-2GB
. File Format: FAT file format
. Store files: *.led
Physical parameters:
. Weight:0.2kg
. Size:122mm*67mm*25mm
. Temperature :-40-85 Degree
. Volgate: DC5V / DC7.5-24V
. Power:3W



Note:
To copy files to SD card, you must first format to the SD card, pay attention to is that each copy must be formatted before.
SD card must be formatted as "FAT" format.
