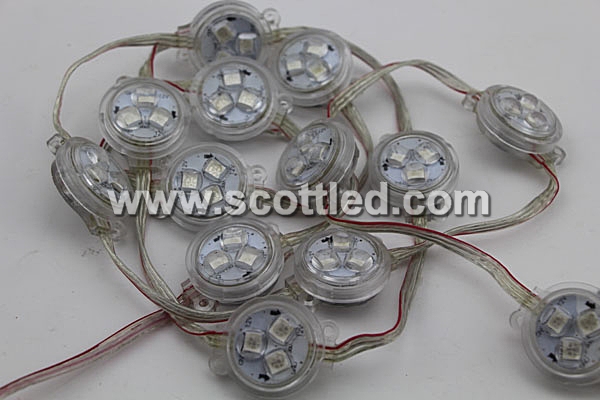

2014 New Item 30mm WS2811 led pixel light module;DC12V input;3pcs 5050 RGB LEDs with optical lens cover;20modules/string;waterproof IP67,with screw ring |
|
Item : SC-WS2811-D30-3-12-OPL |
|
Details :2014 New Item 30mm WS2811 led pixel light module;DC12V input;3pcs 5050 RGB LEDs with optical lens cover;20modules/string;waterproof IP67,with screw ring
Specification:Diameter:30mm IC Type:WS2811 SMD Type:5050SMD Work Voltage:DC12V input LED Number:3pcs 5050 SMD RGB LEDs per module Module Number: 20pcs module per string Wire cable length:12cm wire length for each module Conver Characteristic: convex lens transparent conver Waterproof level:Waterproof IP67 Warranty: 2years Certification: CE & ROHS
Needful led Controller:LED Pixel Controller are both ok. Such as T-1000B,T-1000S,T-100K,T-200K,T-300K and so on.

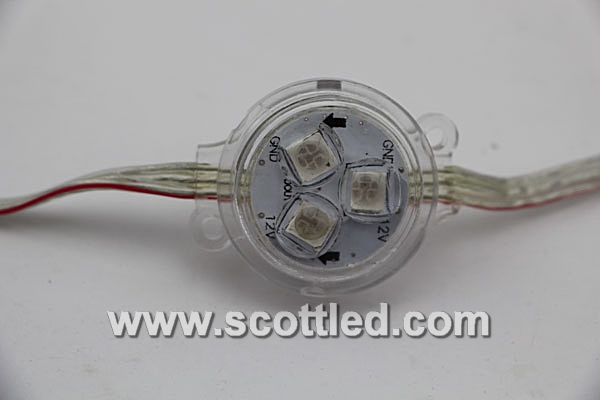

Wire Connect method:There are only three wire cable for the light. Positive Pole: The first wire which one is red and white cable. DAT: The second wire which is in the middle. GND: The third wire.
Other Characteristic:1. convex lens transparent conver 2. with 1pcs transparent ring for each module 3. Good quality wire cable |
|
