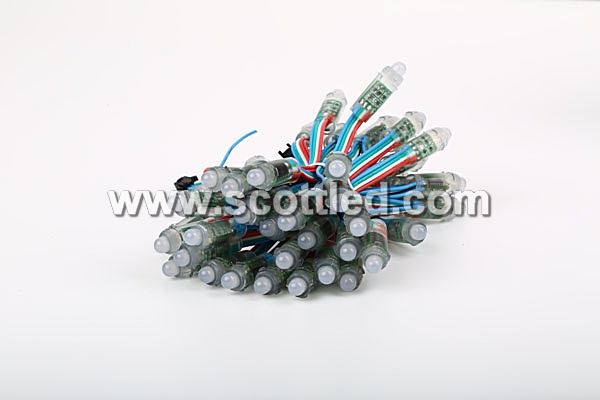

12mm WS2801 LED Pixel Module String light, full color, round shape, 50pcs a string, DC5V input |
|
Item : SC-WS2801-50-5-R-IP68 |
|
Details :12mm WS2801 LED Pixel Module String light, full color, round shape, 50pcs a string, DC5V input
RED WIRE: DC5V input + yellow wire:DATA greem wire: clock blue: Ground input side: is the side with IC RGB Pixels are digitally-controllable lights you can set to any color, or animate. Each RGB LED and controller chip is molded into a 'dot' of silicone. The dots are waterproof and rugged. There are four flanges molded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick. They're typically used to make outdoor signs 12mm diameter (0.45") 75mm deep (1.5") 50 pieces per strand These pixels use a WS2801 chip for full 24 bit color 5V power, 60mA maximum per pixel (LED on full white) 2-pin SPI-like protocol WS2801 Datasheet for the chip inside each pixel Brightness: Red = 3.3 Lumens/300 mcd, Green = 10 Lumens/1000 mcd, Blue = 2.7 Lumens/300 mcd (mcd calculation based on full 120 degree beam) |
|
