Summarization

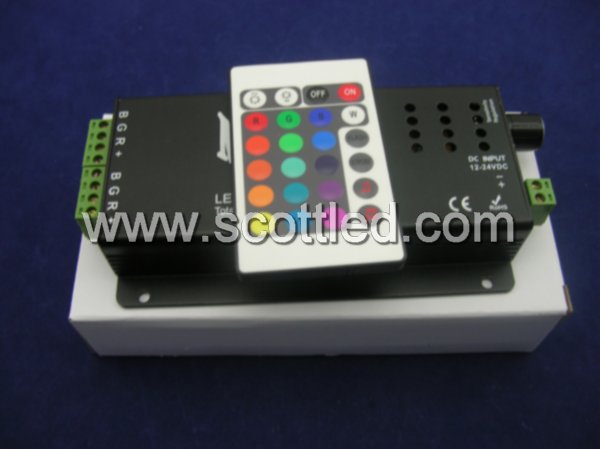

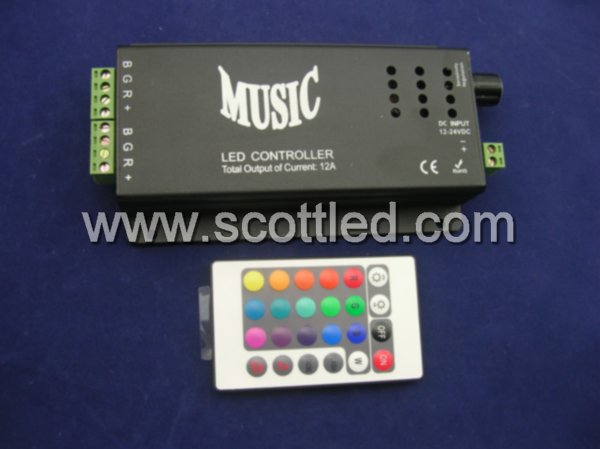

24Key infrared Music LED controller adopts the advanced micro control

unit. It is used for controlling a variety of lamp whose source of light is LED. For

instance, point source of light, flexible strip light, wall washer, glass curtain wall

light and so on; it has many advantages such as low price, easy connection and

simple to use. Meanwhile you could adjust brightness, static colors and color

changing effects through infrared remote control. When it is in sound-control

mode, the colors will change with the rhythm of music.

Technical Parameters

Working temperature:-20°C ~60°C

Input voltage: DC12-24V

Output: 3 channels

Connecting mode: Common anode

External dimension: L140*W86*H26 mm

Packing size: L175*W90*H40 mm

Net weight: 220g

Gross weight: 255g

Static power consumption: <1 W

Output current: <4 A (each channel)

Output power: <144W
