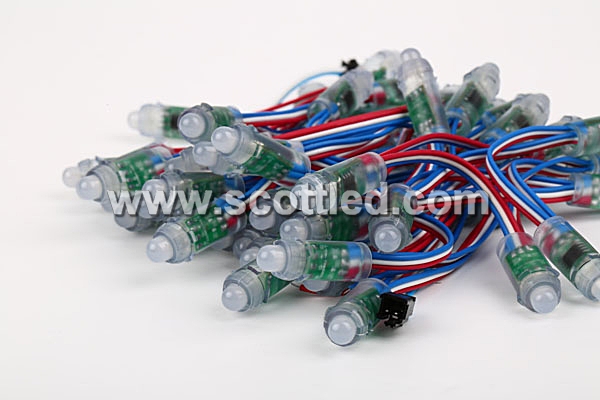

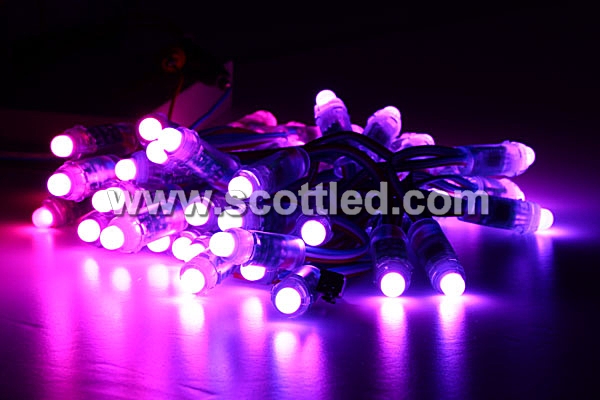

waterproof IP68 DC5V input 12mm WS2811 led pixel strings module rgb full color 50pcs a string,round shape,CE&RHOS

waterproof IP68 DC5V input 12mm WS2811 led pixel strings module rgb full color 50pcs a string,round shape,CE&RHOS

Item : SC-WS2811-50-5-R-IP68

Details :

good quality waterproof IP68 DC5V input 12mm WS2811 led pixel strings module rgb full color 50pcs a string,round shape,CE&RHOS



Great for decoration, advertising lights.

rgb LED pixel lighting  (WS 2811 IC)

Working voltage:            DC5V

Working current:             30ma

Working consumption:     0.3W
Working temperature:    40°C- 60

IP grade:                       IP68

Dimension:                    12mm

LED type:                       1pcs  stawhat

 LED qty:                        1pcs
Lifespan:                        MTBF>50000h

Viewing angle:                >90



wiring as below:

RED: DC5V+

GREEN: DAT

BLUE: GND



RGB Pixels are digitally-controllable lights you can set to any color, or animate

 Each RGB LED and controller chip is molded into a 'dot' of silicone.

The dots are waterproof and rugged.

There are four flanges molded in so that you can 'push' them

 into a 12mm drill hole in any material up to 1.5mm/0.06" thick

They are typically used to make outdoor signs. Compared to our other 20mm LED dots

these are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.

The pixels are connected by a 3-conductor cable. Red is +5V, Yellow is Ground, Green is Data and

 Data is shifted down from one pixel to the next so that you can easily

cut the strand or attach more onto the end.

Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15-bit color for 32,768 different shades). The pixels must be clocked by a microcontroller

The pixels use 8mm diffused RGB LEDs

 with brightness of about 300 mcd per individual r/g/b LED.



SD controller
Programable by Software
Individually Control
Conformal Coating,PVC glue protection
IP68, Water-proof protection
Easy installation (punching 12mm hole on metal panel)
50pcs per set



 Applications



Meets the general lighting
environment such as:
Outdoor advertising
christmas decoration
